Defects Detection Line

Ensure quality and efficiency

  • First-article
  • X-Ray
  • LCR Test Station
  • Cost and time saving




Return Technical Spec Document

First-article Parameters

  • Max PCBA size

    400*300mm

  • Max PCBA height

    26mm

  • Signal frequency

    20Hz~300KHz

  • Model

    FAI-600IV



X-Ray detection parameters

  • Min recognition display

    600nm

  • CRT voltage

    30~160KV

  • Max. PCB size

    410*410mm

  • Max inspection area

    510*510mm

  • Max PCBA weight

    5kg

  • Angle of roll

    0-70° for any view

  • CT function

    3D all-round inspection

  • System monitor

    20" LCD with 1600*1200px resolution

  • Security X-ray Leak

    < 1μS v/hr



LCR Test Station Parameters

  • Inductance(L)

    0.01nH~9.9999kH

  • Capacitance(C)

    0.00001pF~9.9999F

  • Resistance(R)

    0.01m Ω ~99.999M Ω

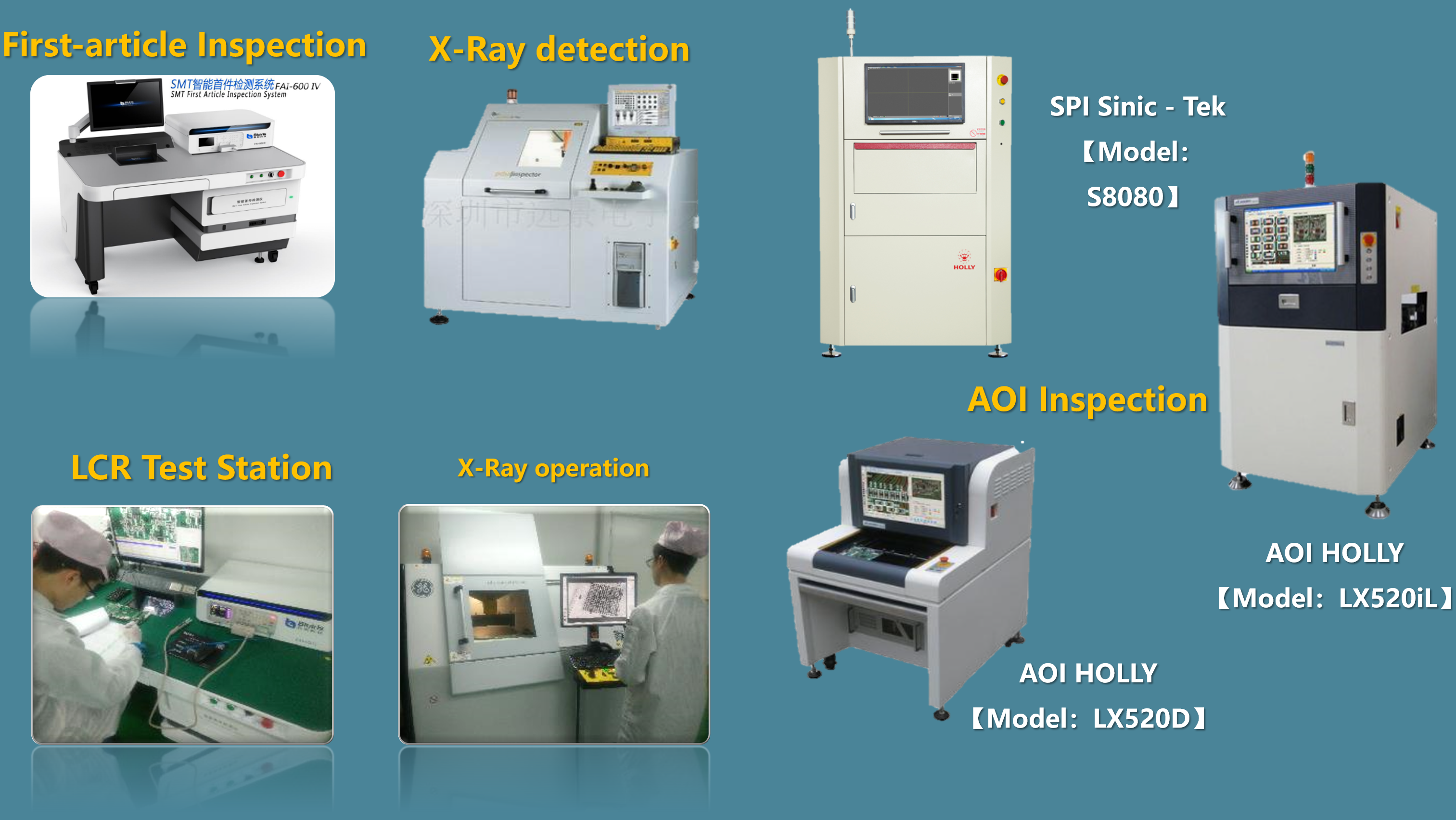

Defects Detection Equipments
